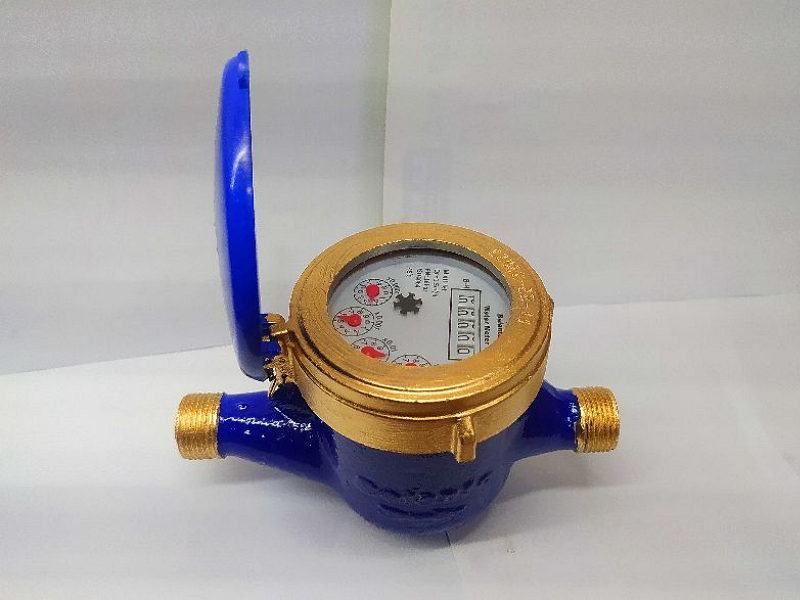

Installing and maintaining a rotary vane liquid-sealed water meter is crucial for ensuring accurate measurement and reliable performance in various water supply systems. These meters are commonly used in residential, commercial, and industrial settings to measure the flow of water with precision. Proper installation and maintenance procedures are essential to maximize meter longevity and accuracy. In this article, we'll provide a comprehensive guide on how to correctly install and maintain a rotary vane liquid-sealed water meter.
Location: Choose an appropriate location for installing the water meter where it is easily accessible for reading and maintenance. Ensure that the installation site is free from obstructions and has adequate clearance for servicing the meter.
Orientation: Install the water meter in a horizontal position with the inlet and outlet connections aligned vertically. This orientation ensures optimal flow through the meter and accurate measurement of water consumption.
Piping: Connect the water meter to the piping system using appropriate fittings and connections. Ensure that the pipe diameter matches the meter's specifications to prevent flow restrictions or pressure losses.
Alignment: Align the water meter with the piping system to minimize stress on the meter body and avoid leaks or damage. Use support brackets or straps to secure the meter in place and prevent movement during operation.
Sealing: Ensure that all joints and connections are properly sealed to prevent leaks and ensure the integrity of the water meter installation. Use thread sealant or pipe tape on threaded connections and apply a suitable sealant or gasket on flanged connections.
Pressure Testing: Perform a pressure test on the installed water meter to verify the integrity of the system and detect any leaks or defects. Pressurize the system gradually and inspect for signs of leakage at connections, joints, and the meter body.
Regular Inspection: Schedule regular inspections of the water meter to check for signs of damage, corrosion, or wear. Inspect the meter body, vane assembly, seals, and connections for any abnormalities or deterioration that may affect performance.
Cleaning: Clean the water meter periodically to remove sediment, debris, or contaminants that could impair meter accuracy or functionality. Use a soft brush, mild detergent, and clean water to gently scrub the meter surfaces and internals.
Calibration: Periodically calibrate the water meter to ensure accurate measurement of water flow. Follow manufacturer guidelines and industry standards for calibration procedures, or enlist the services of a qualified technician to perform calibration as needed.
Lubrication: Lubricate the rotary vane assembly and moving parts of the water meter to maintain smooth operation and reduce friction. Use a compatible lubricant recommended by the manufacturer to ensure proper meter performance and longevity.
Leak Detection: Monitor the water meter for signs of leaks or abnormalities in flow measurement. Conduct routine leak detection tests by comparing meter readings with actual water usage to identify potential leaks or discrepancies.
Record Keeping: Keep detailed records of maintenance activities, inspections, and calibration results for the water meter. Maintain a logbook or digital record of meter performance to track changes over time and facilitate troubleshooting or analysis as needed.
By following these guidelines for installation and maintenance, you can ensure the correct operation and longevity of a rotary vane liquid-sealed water meter. Proper installation, regular inspection, cleaning, calibration, lubrication, and record-keeping are essential practices for maximizing meter accuracy, reliability, and performance in water supply systems.
